CMS Combustion Management System
The ELSB (Electric Steam Boiler) is a highly efficient, electrically heated steam generator for 350 to 7,500 kg/h steam at up to 24 bar. When operating with green energy, the boiler allows your company to achieve a CO2-neutral steam supply.
- Modular combustion management
- Suitable for simple to high-end applications
- Inputs/outputs freely configurable
- Largely language-neutral due to use of symbols
- Worldwide approval CE/UL/SIL 3
- CODESYS Soft-PLC integrated
- Integrated fault indicatior system
- Modbus TCP on-board. O2 control, Adaptive CO/H2 combustion optimisation (SIL2)
- Integrated flame monitoring
- Integrated valve leakage test (VLT)
Application
CMS - The next evolutionary step in combustion managements
Whether standard industrial combustion or more complex process applications, the revolutionary LAMTEC CMS burner and plant management system sets new standards.
Modular: The CMS can be easily adapted to the needs of the plant. From small industrial burners to large plants, everything can be controlled. Safe: The modules are connected via the fail-safe iLSB.
Communicative: The CMS has a Modbus TCP interface as standard. Other fieldbus modules can be connected, e.g. PROFIBUS DP, PROFINET, Modbus RTU in preparation.
Simple: The CMS supports graphic and intuitive user guidance.

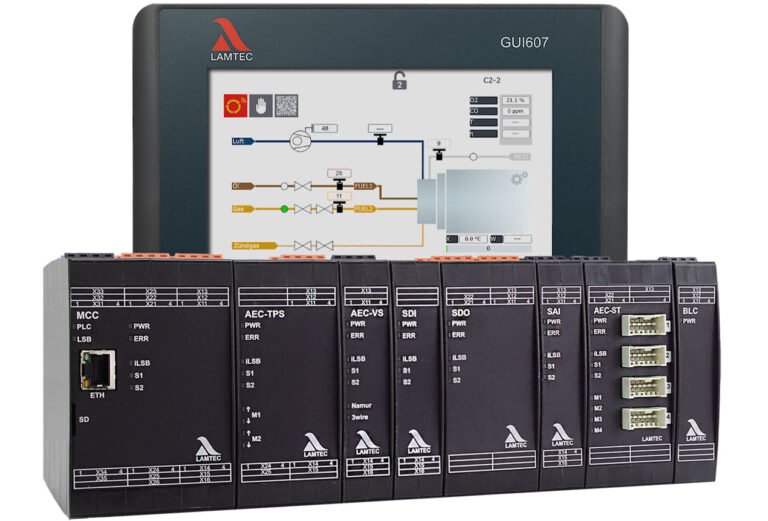

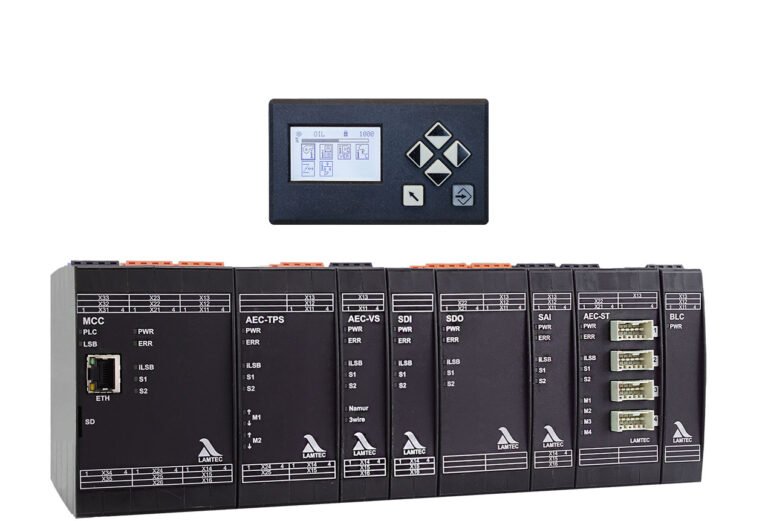

Demand-oriented: Whether simple and cost-effective UI400 user interface or 7″ colour touch screen (GUI607) for more comfort – with the LAMTEC CMS you are not limited in visual output.
Versatile: Integrated soft PLC (CODESYS) for non-failsafe control tasks.
Flexible: Free assignment of burner functions to inputs and outputs in the CMS.
Technical Data
|
Approvals
EC Type Examination Certificate according to 2014/68/EU (Pressure Equipment Directive)
EC Type Examination Certificate according to 2016/426/EU (Gas Appliances Regulation)
SIL 3
CE Declaration of Conformity
USA and Canada
|

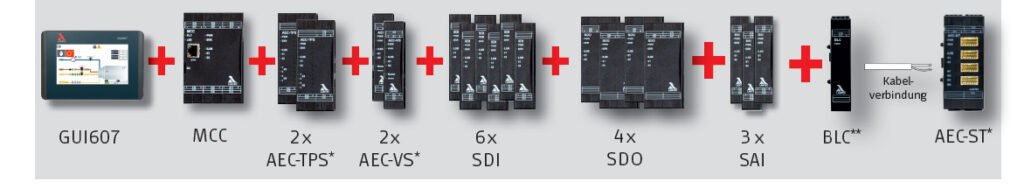

System Modules
MCC
Your advantages at a glance:
- Burner sequencer
- 12 Digital Inputs, 9 digital Outputs, freely configurable
- 2 A per output, max. 8 A in total
- Input for flame sensor FFS07/08 (option)
- Input for ionisation (option)
- Firing rate input 4-20 mA/TPS or potentiometer,
Output 4-20 mA internal firing rate - CODESYS Soft PLC with access to internal variables for non-failsafe extensions
- ModbusTCP interface on-board (Ethernet)
- Versions available:
- Input 230VAC | Output 230VAC
- Input 120VAC | Output 120VAC
- Input 24VDC | Output 230VAC
- Input 24VDC | Output 120VAC
- Input 24VDC | Output 24VDC
AEC-TPS
Your advantages at a glance:
- 1 Module supports 2 TPS actuators
- Current output supports up to 0,5 A per actuator
- Up to 5 AEC-TPS modules per system
- CMS actuator available from 6 Nm to 200 Nm
- Technically compatible with ETAMATIC/FMS actuators (type approval has to be checked)
- Up to 10 actuators per CMS system possible
AEC-VS
Your advantages at a glance:
- Module for frequency inverter of the combustion air fan or recirculation fan
- Module for 4-20 mA motors, pneumatic actuators etc.
- Up to 10 AEC-VS per CMS system possible
- VSD module with feedback input for:
– Namur sensor
– 3-wire sensor
– 4-20 mA - Floating digital output (freely configurable for non-failsafe output, e.g. fan ON signal)
- Digital input (freely configurable for non-failsafe default, e.g. fault VSD)
SDI
Your advantages at a glance:
- 8 digital Inputs per module
- All inputs are freely configurable
- Available in alternative versions for 115/230 V and 24 VDC
- Up to 6 digital input modules
- Up to 60 digital inputs possible per CMS system.
SDO
Your advantages at a glance:
- 8 fail-safe outputs per module
- All outputsarefreelyconfigurable
- Available in alternative versions for 115/230 VAC and 24 VDC
- Up to 4 digital output modules per CMS system
- Up to 41 digital outputs per CMS system possible
SAI
Your advantages at a glance:
- 3 failsafe analogue inputs, or 6 non-failsafe analogue inputs, or any combination possible
- All inputs are freely configurable to the functions
- Inputs: 4-20 mA, 0-10 V impulse or digital
- Up to 3 SAI per system
- Up to 9 failsafe or 18 non-failsafe inputs per CMS system possible
AEC-ST
Your advantages at a glance:
- Compatible to the stepper motors of the BT300
- 1 Module supports 4 stepper motors
- 0,8 Nm, 1,2 Nm, 3 Nm, 9 Nm
- 2 AEC-ST Modules per CMS system
BLC
Your advantages at a glance:
- Connecting CMS modules installed at different locations
- Modules for extending the CMS internal bus via cable
- Maximum length of a bus segment 70 m
- BLC Active:
- Always located at the end of a bus connection (receiver module).
- Opens a new bus segment for the modules connected thereafter for bus lengths > 70 m
- Requires active +24V DC power supply.
- BLC Passive:
- Always located at the beginning of a bus connection (transmitter module).
- Can also be located at the end of a bus connection (receiver module). In this case, no new bus segment is started.
- Does not require a separate +24V DC power supply.
| BLC active | BLC passive |
|  |
