BurnerTronic BT300

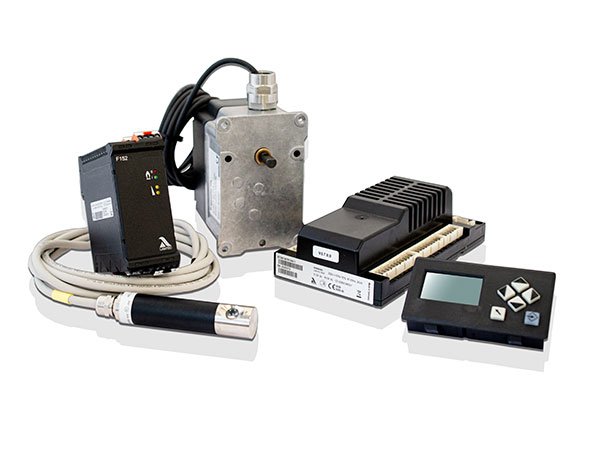

BurnerTronic BT300 Burner Control System
- Modular burner control system
- Electronic compound with up to 4 channels
- Connectable to control instrumentation (system)
- Easy parameterisation via icon, adjustable via PC
- Integrated flame monitoring
- Firing rate controller (optional)
- Integrated valve leakage test (VLT)
- O2 regulation
- Adaptive CO/H2 combustion optimization (SIL2)
- Installation directly at the burner

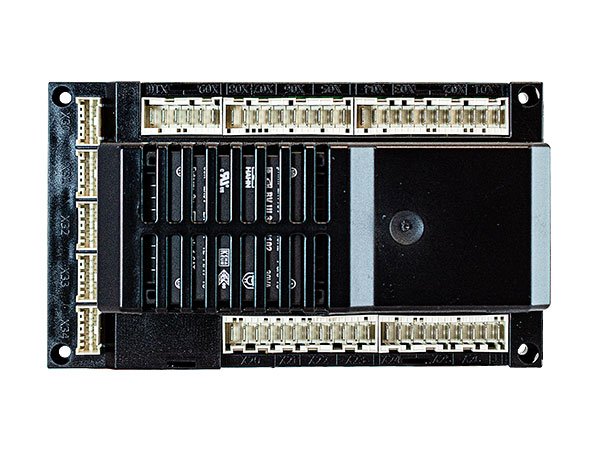

Application
CMS - The next evolutionary step in combustion managements
BurnerTronic BT300 combines the advantages of an electronic fuel/air compound control with an electronic burner control unit. Up to 3 motorised actuators are available. In addition, the BurnerTronic BT300 can be expanded by various modules, for example, by a module for speed control of the combustion air fan.
The basic version of the BurnerTronic BT300 has an integrated valve leakage check, flame monitoring, flue gas recirculation, operating hours and start-up counter.
A load control system as well as a O2 controller for optimising oil or gas-fired forced-draught burner are available as well. For adding this, a Lambda Transmitter LT1/LT2/LT3/LT3-F must be installed additionally.
The BurnerTronic BT300 is designed for direct mounting on the burner.
Technical Data
Approvals
| Approvals | EC Type Examination Certificate (Module B) according to 2014/68/EU (Pressure Equipment Directive)
EC Type Examination Certificate according to 2016/426 (Gas Appliances Regulation GAR)
SIL 3
CE Declaration of Conformity
USA and Canada
|

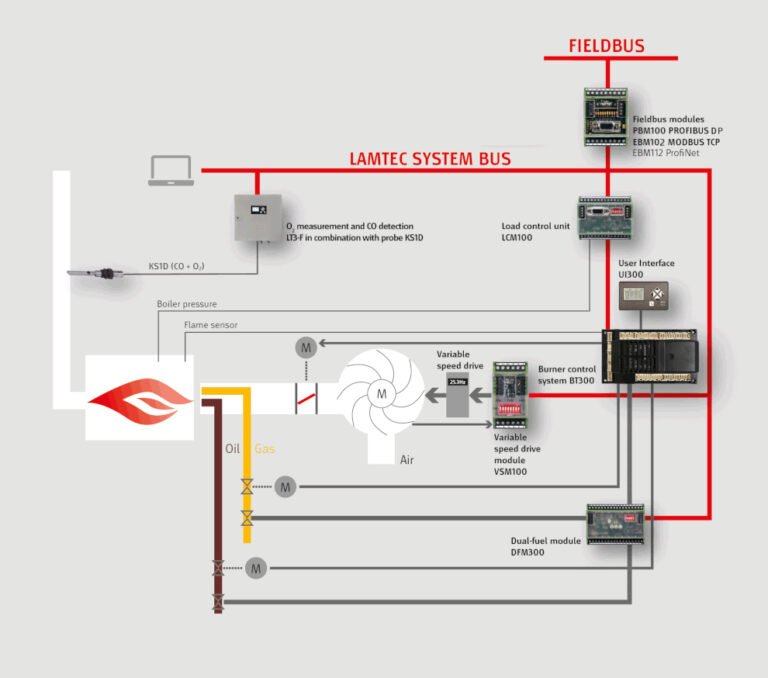

System Modules
Dual-fuel module DFM300
- Extension module for dual-fuel applications
- Connection via LAMTEC SYSTEM BUS (LSB)
- Oil/gas or gas/gas application
- Compatible with BT340 and BT341
- LCM/LEM required
RPM module VSM100
- Extension module for rpm control via inverter
- Feedback via Namur, 3-wire or analog signal
- Alternative: Connection of a 4th servomotor via 4..20mA/4..20mA
- Connection via LAMTEC SYSTEM BUS (LSB)
- Compatible with all BT300 variants
- LCM/LEM required
Load Controller Module LCM100
- Load controller module
- Switching between two programmed setpoints (optional)
- Control by atmospheric condition
- Additional functions:
- Gateway for connecting LSB devices
- Burner efficiency monitor output
- Fuel meter
- PT100/ PT1000 input for boiler, outdoor and flue gas temperature
- Connection via LAMTEC SYSTEM BUS (LSB)
- Compatible with all BT300 variants
LSB Interface Extension Module LEM100
- LSB interface extension module
- LAMTEC SYTEM BUS (LSB) interface for connecting additional BT modules
- Bus coupling to BT300
- Compatible with all BT300 variants
PROFIBUS DP PBM100 Field Bus Module
- Profibus DP field bus module
- Connection via LAMTEC SYSTEM BUS (LSB)
- Compatible with all BT300 variants
- LCM/LEM required
Modbus TCP EBM102 Field Bus Module
- Field bus module for Modbus TCP
- Connection via LAMTEC SYSTEM BUS (LSB)
- Compatible with all BT300 variants
- LCM/LEM required
PROFINET EBM112 Field Bus Module
- Field bus module for PROFINET
- Connection via LAMTEC SYSTEM BUS (LSB)
- Compatible with all BT300 variants
- LCM/LEM required
