H₂ / Biofuels
Low-NOx
Uni Condens 8000 F (50 - 115 kW)
- Condensing boiler for apartment buildings and small-scale commercial applications of 50 to 115 kW
- Seasonal room heating efficiency at up to 70 kW of 93%
- Can be operated with gas or low-sulphur fuel oil with low emissions
- Simple hydraulic assembly (no minimum flow rate required)
- Two separate return circuits for high and low temperatures
Benefits
Overview

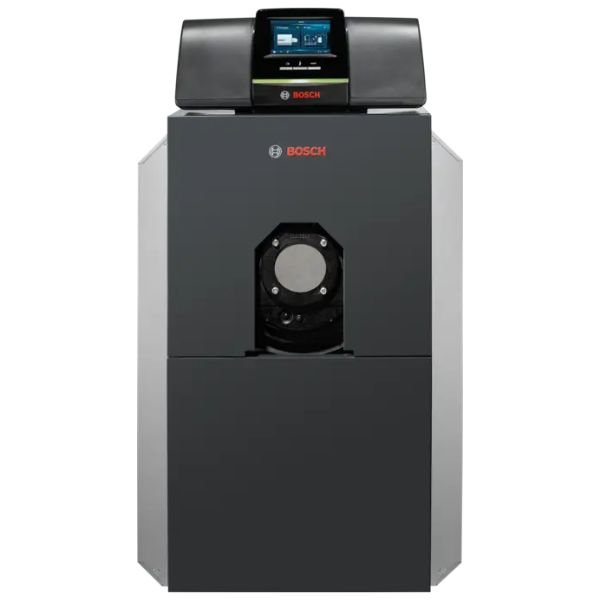

The Uni Condens 8000 F stainless steel condensing boiler is the ideal solution for heating applications between 50 and 115 kW. The boiler can run either on gas or on low-sulphur heating oil. Installation is easy as the boiler is compact, takes up minimum space and weights relatively little.
Intelligent water flow using separate return connections provides the ideal conditions for optimum condensation and thus high standard utilisation ratios. When running on oil, the Uni Condens is capable of a standard utilisation ratio of up to 104%. Up to 110% is even possible when running on gas.
Construction
The Uni Condens has an effective condensate heat recovery surface with special profiling of the tubes, so that the maximum utilisation of the condensation potential is achieved. The construction with burnout combustion chamber ensures that there is clean combustion and low emissions. The two return flow sockets guarantee optimum separation into high-temperature and low-temperature heating circuits. The substructure of the boiler can be removed for easy transport.
Equipment level
Technical Details and Documents
- Model
- Uni Condens 8000 F brochure
- Capacity at 50/30 °C
- Boiler efficiency at 50/30 °C
- ErP
- ErP Label
- Product fiche
- Part number
- UC8000F 50
- Download Now
- 15,3 kW
- 97,0 %
- A+++ D
- Download Now
- Download Now
- Gas, oil, bio gas, bio oil, hydrogen
